Lay Flat - Fittings & Clamps

LFSS212

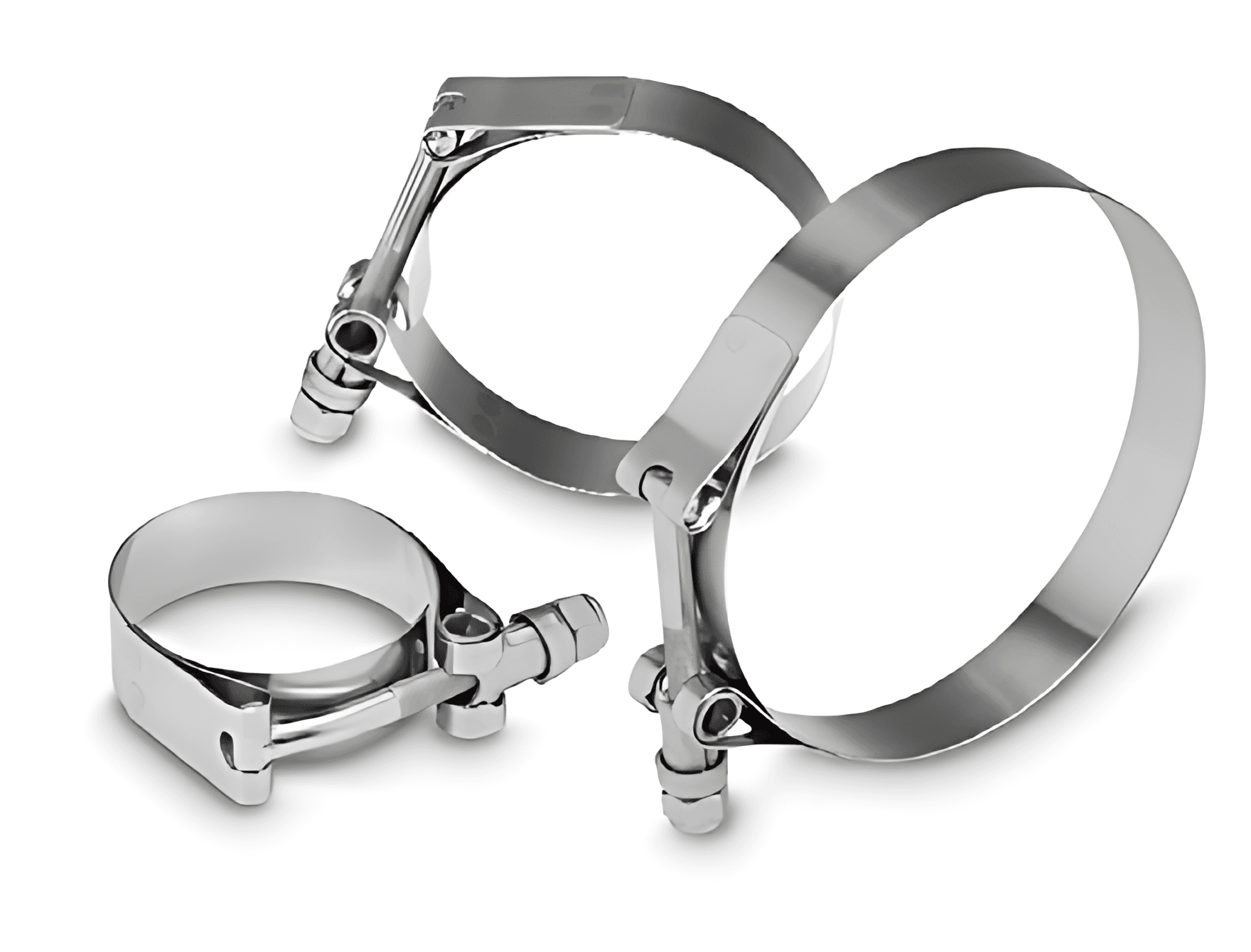

T-Bolt Clamps - 316 Series Stainless Steel

Part No. Size Description Min. Dia. Max. Dia.
LFSS212 2" 2" 316 SS T-Bolt Clamp 2 1/4" 2 9/16"
LFSS325 3" 3" 316 SS T-Bolt Clamp 3 1/4" 3 9/16"
LFSS425 4" 4" 316 SS T-Bolt Clamp 4 1/4" 4 9/16"
LFSS650 6" 6" 316 SS T-Bolt Clamp 6 1/4" 6 9/16"
LFSS850 8" 8" 316 SS T-Bolt Clamp 8 2/5" 8 7/8"

Part No. Size Description Weight

Fittings shown are schedule 80 PVC. Schedule 40 PVC available.
LF2FAIX

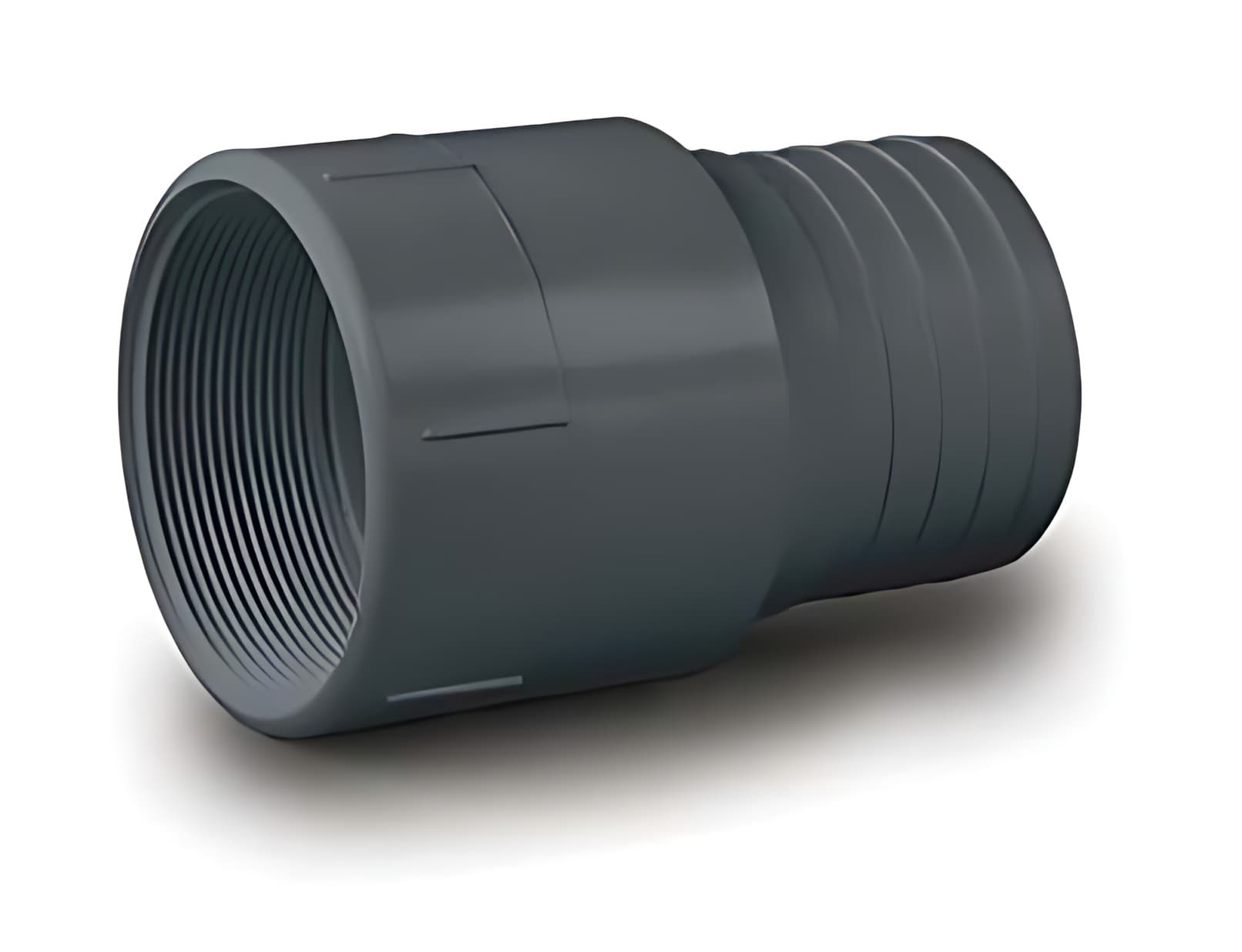

Insert Female Threaded Adapters

LF2FAIX 2" 2" Insert Female Threaded Adapter 0.50 lbs 0.23 kg
LF25FAIX 2 1/2" 2 1/2" Insert Female Threaded Adapter 0.85 lbs 0.39 kg
LF3FAIX 3" 3" Insert Female Threaded Adapter 1.36 lbs 0.62 kg
LF4FAIX 4" 4" Insert Female Threaded Adapter 1.80 lbs 0.82 kg
LF6FAIX 6" 6" Insert Female Threaded Adapter 4.30 lbs 1.95 kg
LF8FAIX 8" 8" Insert Female Threaded Adapter 7.80 lbs 3.54 kg
LF2MAIX

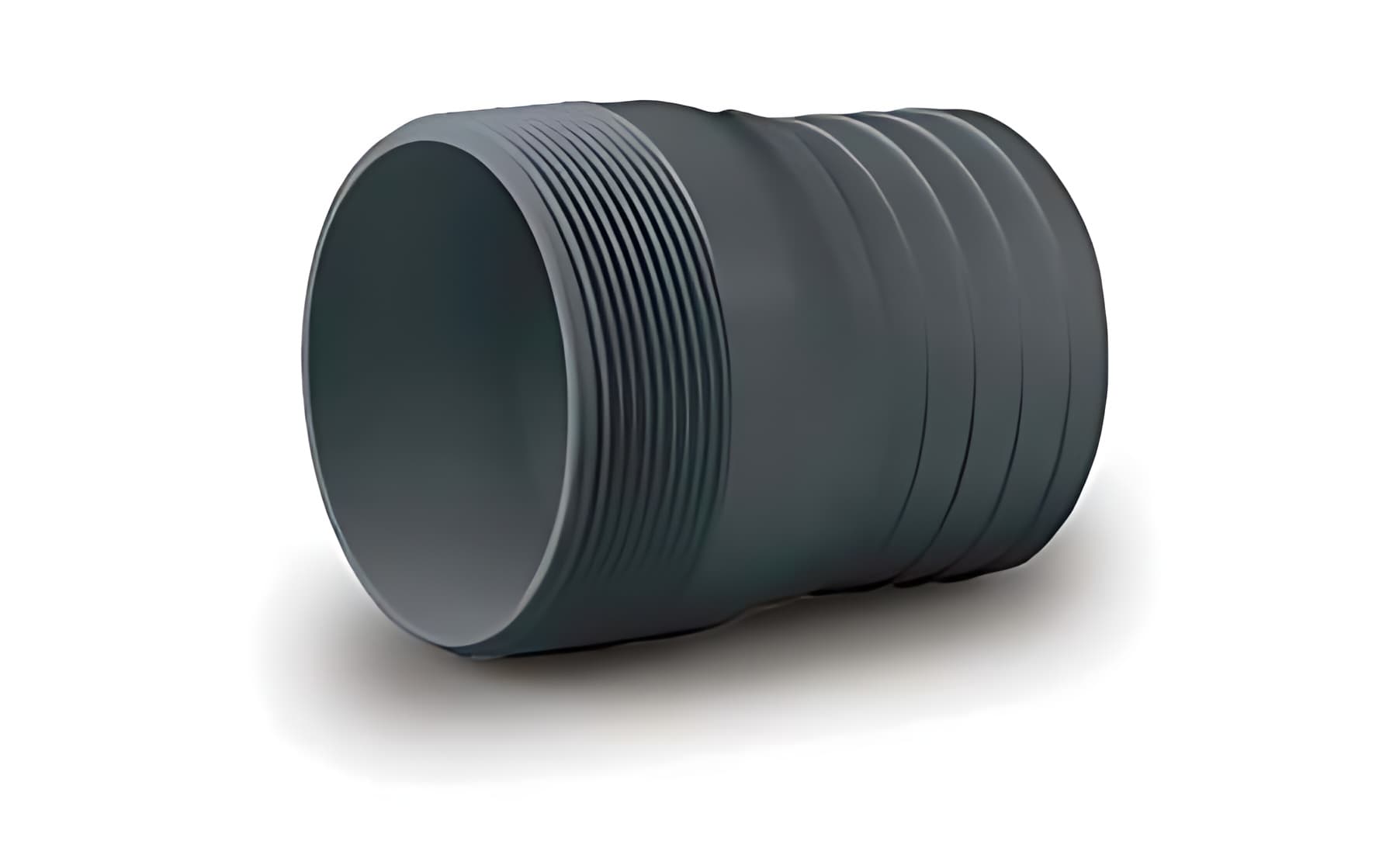

Insert Male Threaded Adapters

LF2MAIX 2" 2" Insert Male Threaded Adapter 0.28 lbs 0.13 kg
LF25MAIX 2 1/2" 2 1/2" Insert Male Threaded Adapter 0.42 lbs 0.19 kg
LF3MAIX 3" 3" Insert Male Threaded Adapter 0.56 lbs 0.25 kg
LF4MAIX 4" 4" Insert Male Threaded Adapter 0.83 lbs 0.38 kg
LF6MAIX 6" 6" Insert Male Threaded Adapter 2.08 lbs 0.94 kg
LF8MAIX 8" 8" Insert Male Threaded Adapter 9.00 lbs 4.08 kg
LF2LX

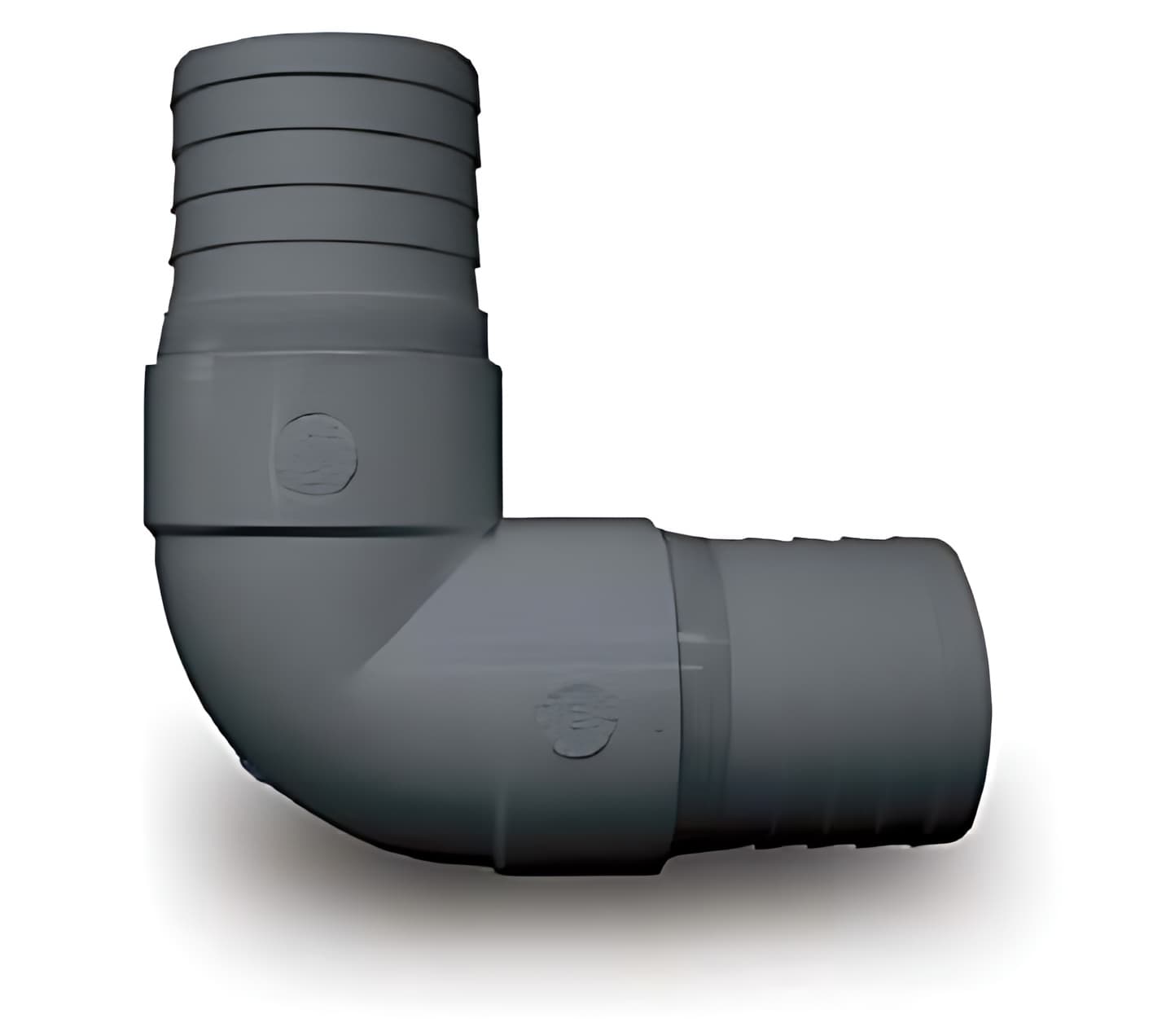

Insert Elbow

LF2LX 2" 2" x 2" x 2" Insert Elbow 0.55 lbs 0.25 kg
LF25LX 2 1/2" 2 1/2" x 2 1/2" x 2 1/2" Insert Elbow 0.75 lbs 0.34 kg
LF3LX 3" 3" x 3" x 3" Insert Elbow 2.80 lbs 1.27 kg
LF4LX 4" 4" x 4" x 4" Insert Elbow 3.26 lbs 1.48 kg
LF6LX 6" 6" x 6" x 6" Insert Elbow 12.8 lbs 5.81 kg
LF8LX 8" 8" x 8" x 8" Insert Elbow 17.3 lbs 7.85 kg
LF2TX

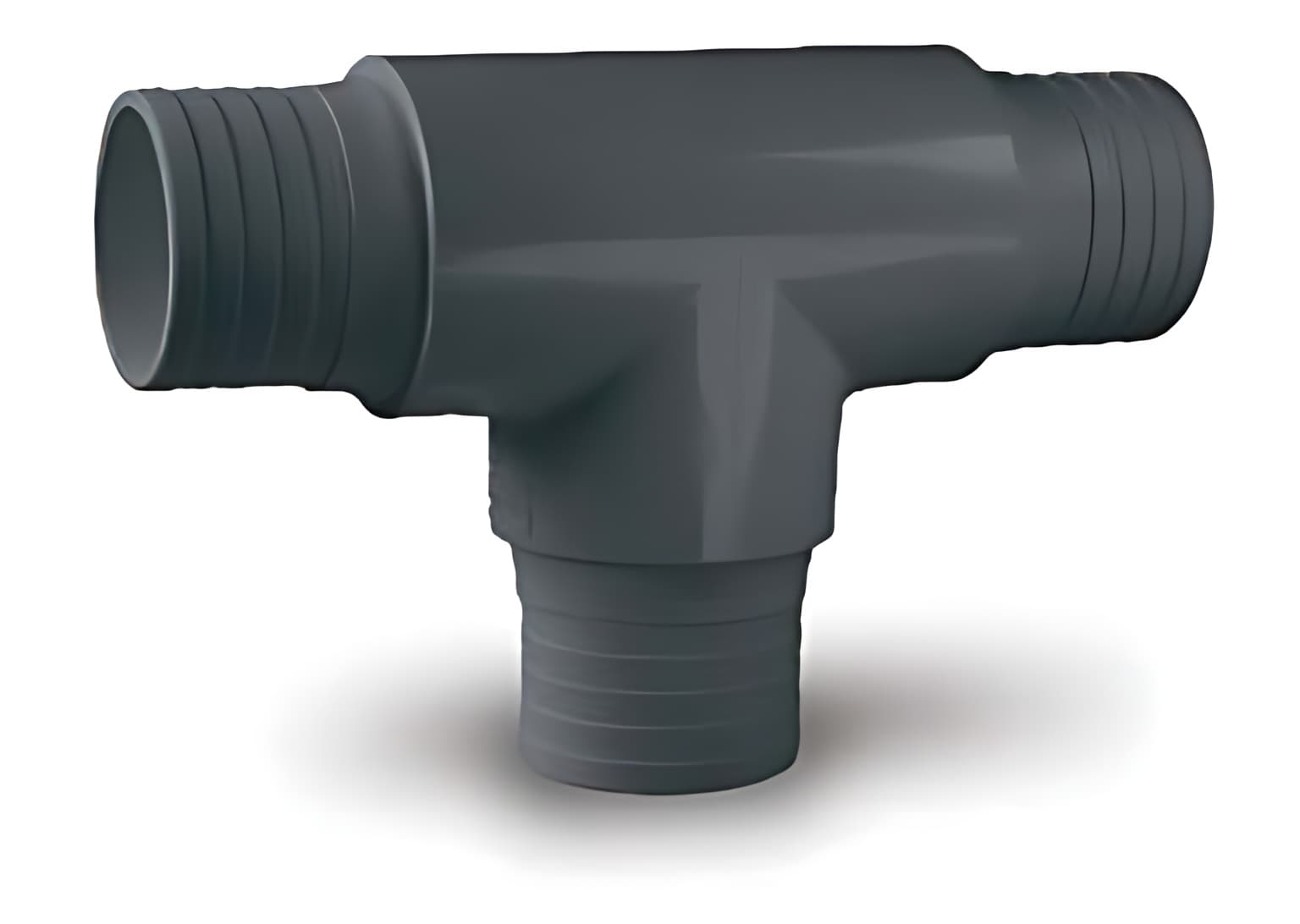

Insert Tees

LF2TX 2" 2" x 2" x 2" Insert Tee 1.35 lbs 0.61 kg
LF25TX 2 1/2" 2 1/2" x 2 1/2" x 2 1/2" Insert Tee 2.25 lbs 1.02 kg
LF3TX 3" 3" x 3" x 3" Insert Tee 3.66 lbs 1.66 kg
LF4TX 4" 4" x 4" x 4" Insert Tee 4.87 lbs 2.21 kg
LF6TX 6" 6" x 6" x 6" Insert Tee 17.0 lbs 7.71 kg
LF8TX 8" 8" x 8" x 8" Insert Tee 24.5 lbs 11.1 kg
LF2ICX

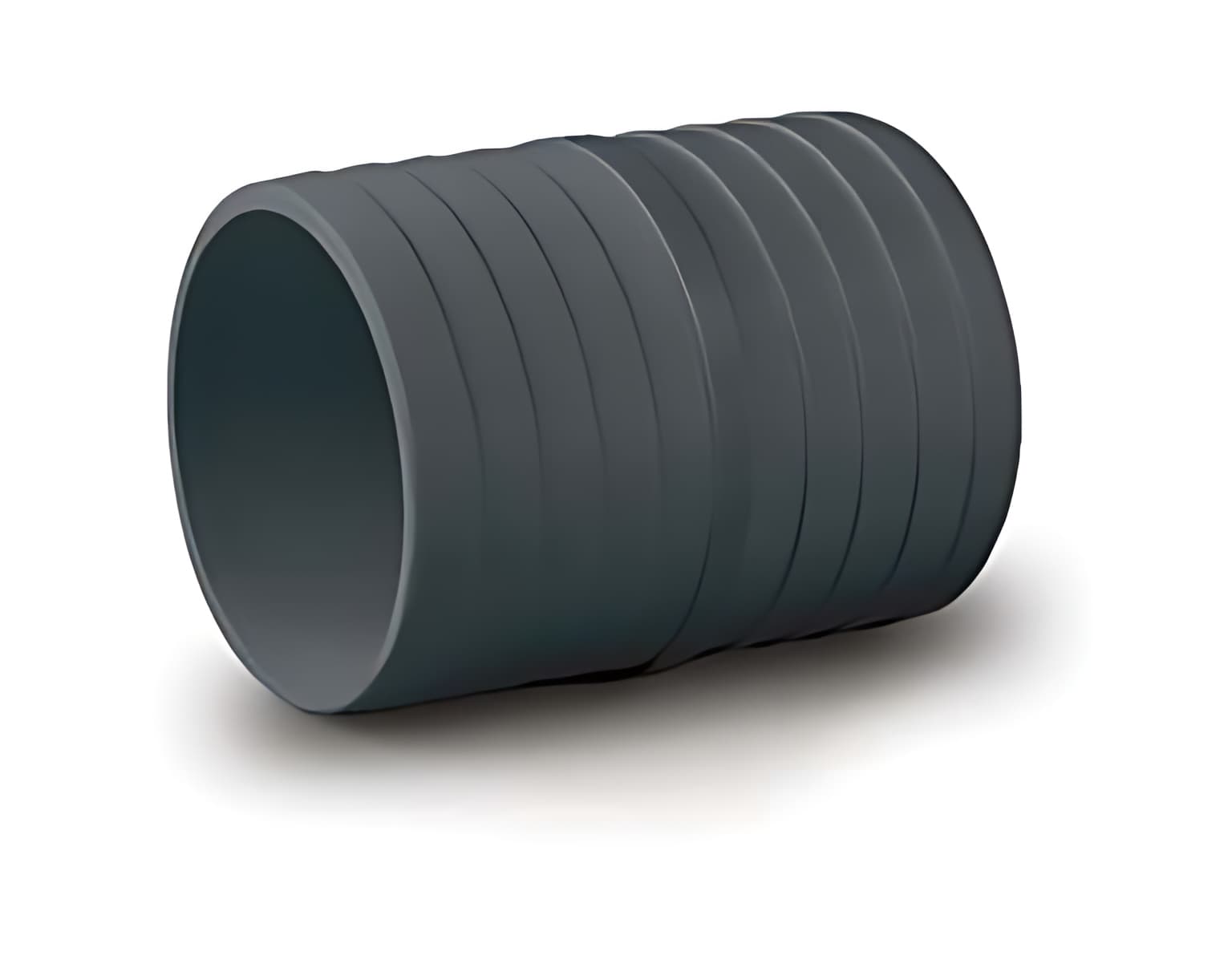

Insert Couplings

LF2ICX 2" 2" Insert Coupling 0.20 lbs 0.09 kg
LF25ICX 2 1/2" 2 1/2" Insert Coupling 0.32 lbs 0.15 kg
LF3ICX 3" 3" Insert Coupling 0.51 lbs 0.23 kg
LF4ICX 4" 4" Insert Coupling 0.83 lbs 0.38 kg
LF6ICX 6" 6" Insert Coupling 2.00 lbs 0.91 kg
LF8ICX 8" 8" Insert Coupling 5.25 lbs 2.38 kg
LF2IPX

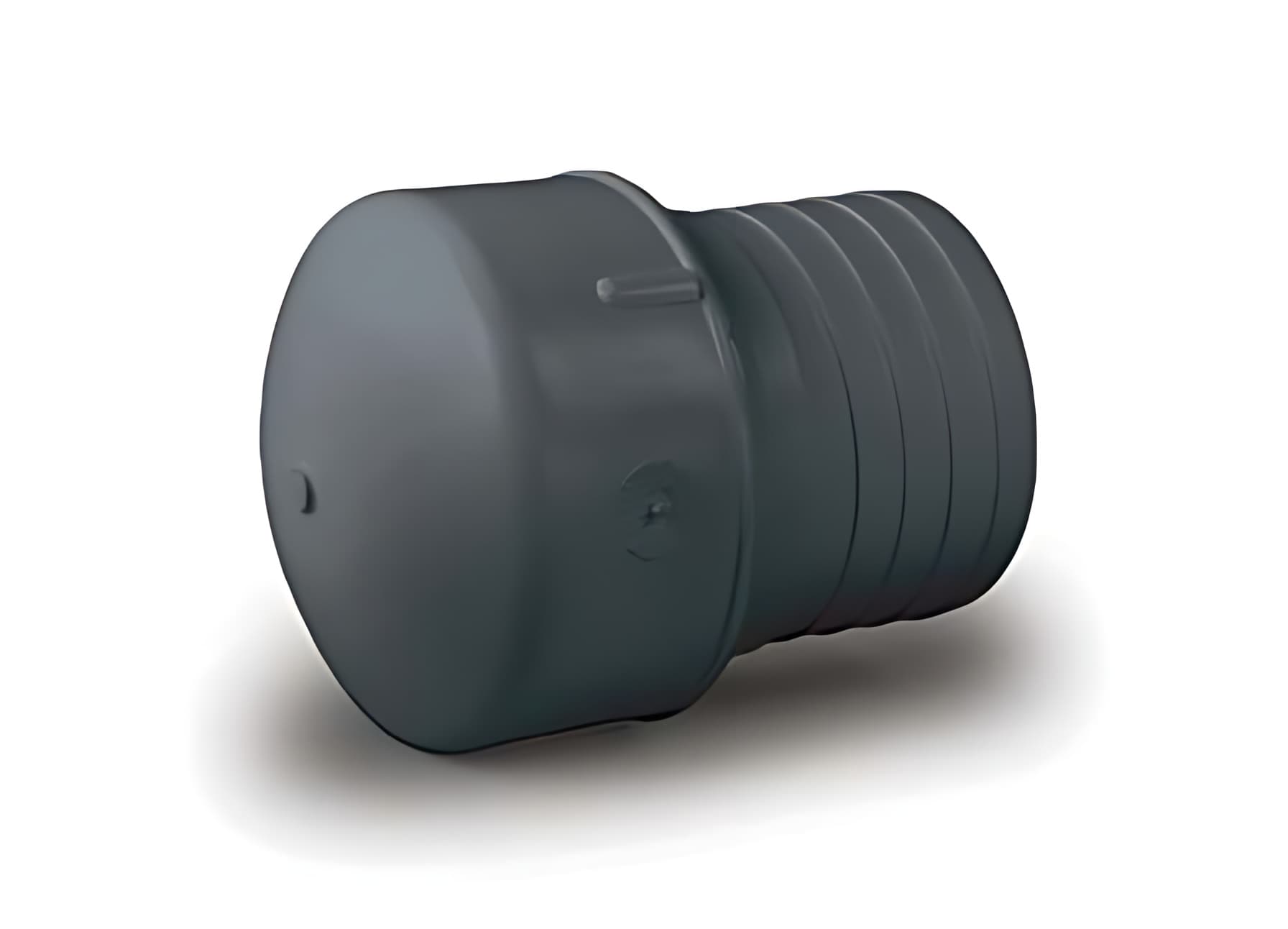

Insert Plugs

LF2IPX 2" 2" HD Insert Plug 0.50 lbs 0.23 kg
LF25IPX 2 1/2" 2 1/2" HD Insert Plug 0.81 lbs 0.37 kg
LF3IPX 3" 3" HD Insert Plug 1.27 lbs 0.58 kg
LF4IPX 4" 4" HD Insert Plug 1.88 lbs 0.85 kg
LF6IPX 6" 6" HD Insert Plug 4.94 lbs 2.24 kg
LF8IPX 8" 8" HD Insert Plug 9.02 lbs 4.09 kg
LF252IRX

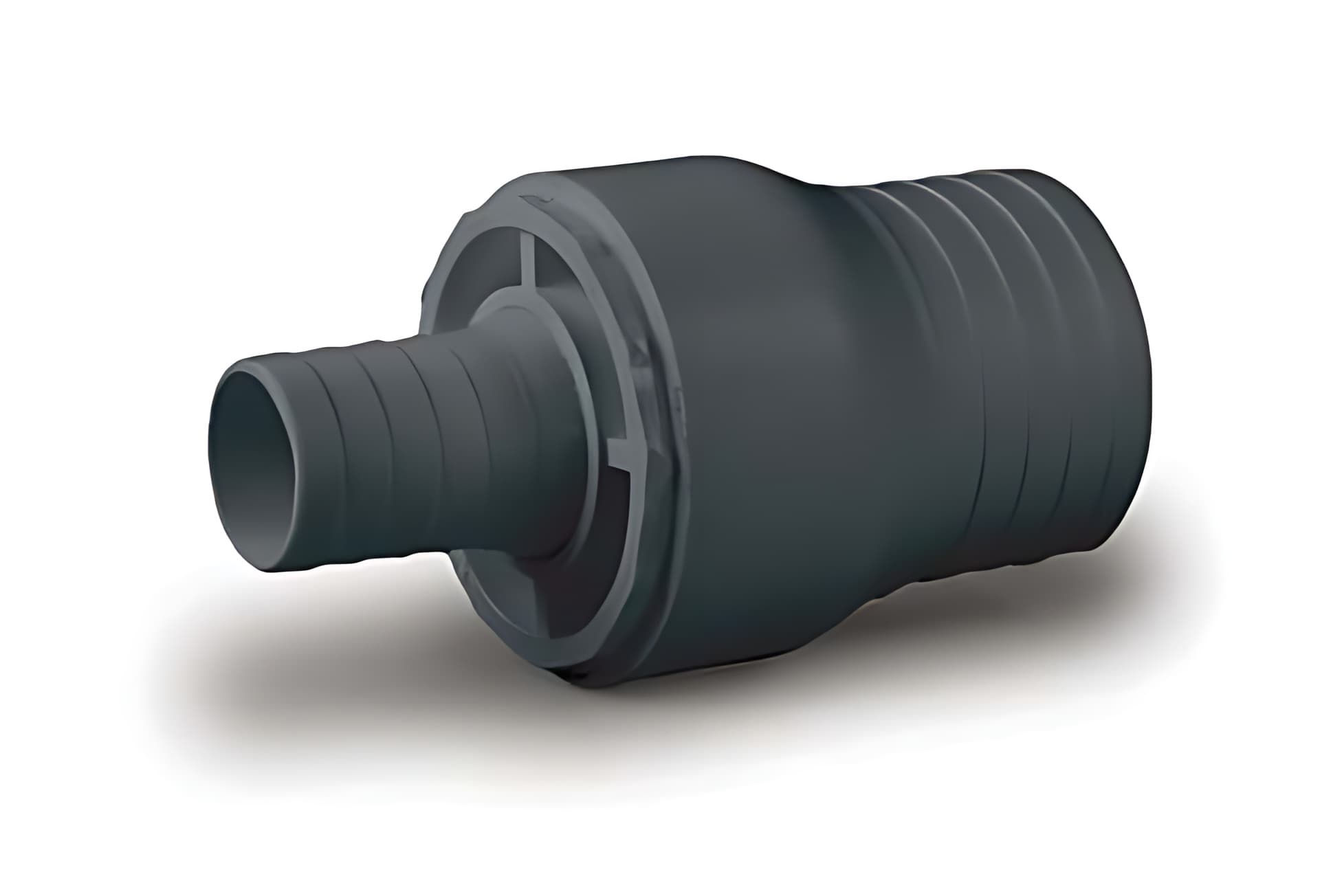

Insert Reducers

LF252IRX 2 1/2" x 2" 2 1/2" x 2" Insert Reducer 0.55 lbs 0.25 kg
LF32IRX 3" x 2" 3" x 2" Insert Reducer 0.66 lbs 0.30 kg
LF325IRX 3" x 2 1/2" 3" x 2 1/2" Insert Reducer 0.58 lbs 0.26 kg
LF42IRX 4" x 2" 4" x 2" Insert Reducer 1.60 lbs 0.73 kg
LF43IRX 4" x 3" 4" x 3" Insert Reducer 0.68 lbs 0.31 kg
LF64IRX 6" x 4" 6" x 4" Insert Reducer 4.50 lbs 2.04 kg
LF84IRX 8" x 4" 8" x 4" Insert Reducer 8.25 lbs 3.74 kg
LF86IRX 8" x 6" 8" x 6" Insert Reducer 8.25 lbs 3.74 kg
LF2IFX

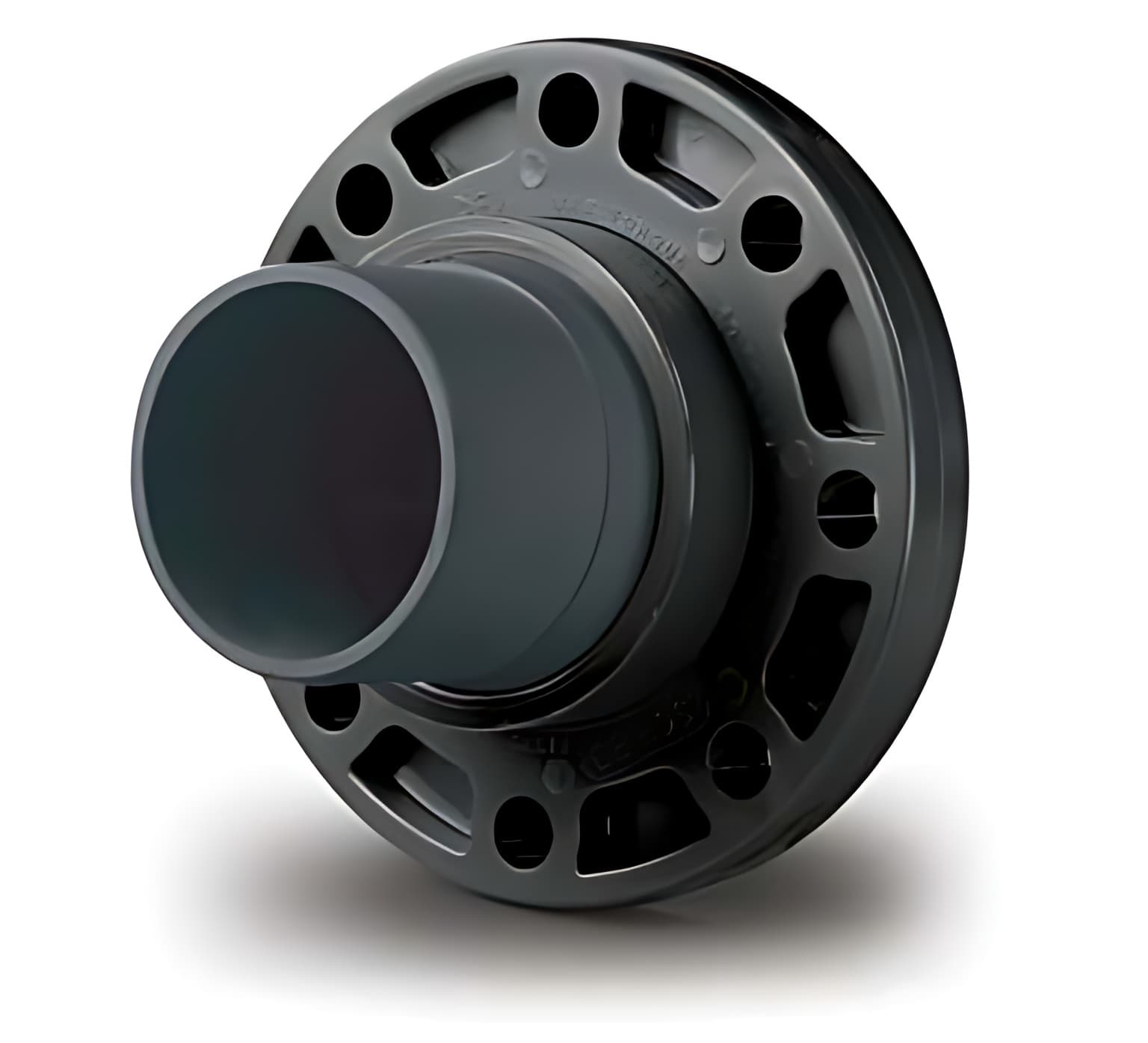

Insert Flange Adapters

LF2IFX 2" 2" Insert Flange Adapter 1.17 lbs 0.53 kg
LF25IFX 2 1/2" 2 1/2" Insert Flange Adapter 1.17 lbs 0.53 kg
LF3IFX 3" 3" Insert Flange Adapter 2.49 lbs 1.13 kg
LF4IFX 4" 4" Insert Flange Adapter 3.80 lbs 1.72 kg
LF6IFX 6" 6" Insert Flange Adapter 6.16 lbs 2.79 kg
LF8IFX 8" 8" Insert Flange Adapter 11.5 lbs 5.22 kg

*Custom fittings available, such as: Victaulic fittings, yellowmine-style, or anything not shown above. Call for quote.
